Collection Boxes (Conductor Heads)
Collection Boxes (Conductor Heads)
Decorative yet functional boxes that catch water from your gutters or roof scuppers and funnel it into the downspouts. Our collection boxes are custom-made in various styles (from simple heads to ornate designs) and can add an elegant accent to your building’s exterior. They also help ventilate the downspout to prevent gurgling and “vacuum lock” in the gutter line.
Commercial Gutters
Commercial Gutters
Robust gutter systems designed for high volume runoff, typical in commercial or larger residential buildings. We fabricate custom box gutters and other profiles in 5″, 6″, or larger sizes to meet your drainage requirements. Made from heavy-gauge metals (usually 24-ga steel or .032" aluminum), our gutters efficiently channel water from the roof while withstanding Utah’s snow loads and sun exposure. They can be made in long lengths for fewer seams (standard sections up to 21’ long).
Downspouts
Downspouts
The vertical pipes that carry water from the gutters down to the ground or drainage system. We produce downspouts in various shapes (round or rectangular) and sizes. Standard sizes range from 3″×3″ square up to much larger dimensions for commercial needs. Our downspouts are custom-fabricated to match your gutter style and can include features like clean-out boxes or elbows. They are crafted from durable metals (steel, aluminum, etc.) and can be color matched to your building.
Collection Boxes (Collector Heads)
Collection boxes (also known as conductor heads or leader heads) are typically mounted at the top of downspouts, just below the gutter or roof edge. Theycollect waterfrom either an outlet in the gutter or an open roof scupper anddirect it into the downspout. Beyond their utility, they serve as an architectural detail on many buildings.
Specifications
Styles & Sizes
We can fabricate any style – from simple square boxes to more intricate tapered or flared designs. Standard collector boxes might be around8–12″ wideand6–12″ tall, but we will build to whatever dimensions complement your building and handle the water flow. If you have decorative preferences (such as beveled edges, integrated motifs, etc.), we accommodate that in the design.
Material Options
Commonly made from24-ga painted steel(matching the gutter color) or0.032″ aluminum. For a high-end look, we also craft them incopperorstainless steel. Copper collector boxes are popular for classic aesthetics – they will patina beautifully and last virtually forever. All our collection boxes are fully soldered or welded for leak-proof construction, especially if metal like copper is used.
Mounting & Outlets
Collection boxes usually attach to the wall and connect between a gutter and a downspout. We will configure the outlet size and location to mate with your downspout (for example, a 3″ round outlet centered at the bottom). We can also include an overflow scupper or multiple outlets if needed for very large roofs. Mounting brackets or flanges can be built-in to ensure the box is securely fastened to the structure.
Features
Our designs ensure that the collection box not only funnels water but also allows air into the downspout system. Thisprevents siphoning and gurglingby breaking any vacuum – improving drainage efficiency. Each box has a sloped bottom toward the outlet to fully drain water. Screens can be added on top openings to catch large debris. We also pay attention to aesthetics: seams are neatly joined, and proportioning is done so that the box looks balanced on the building facade.
Commercial Gutters

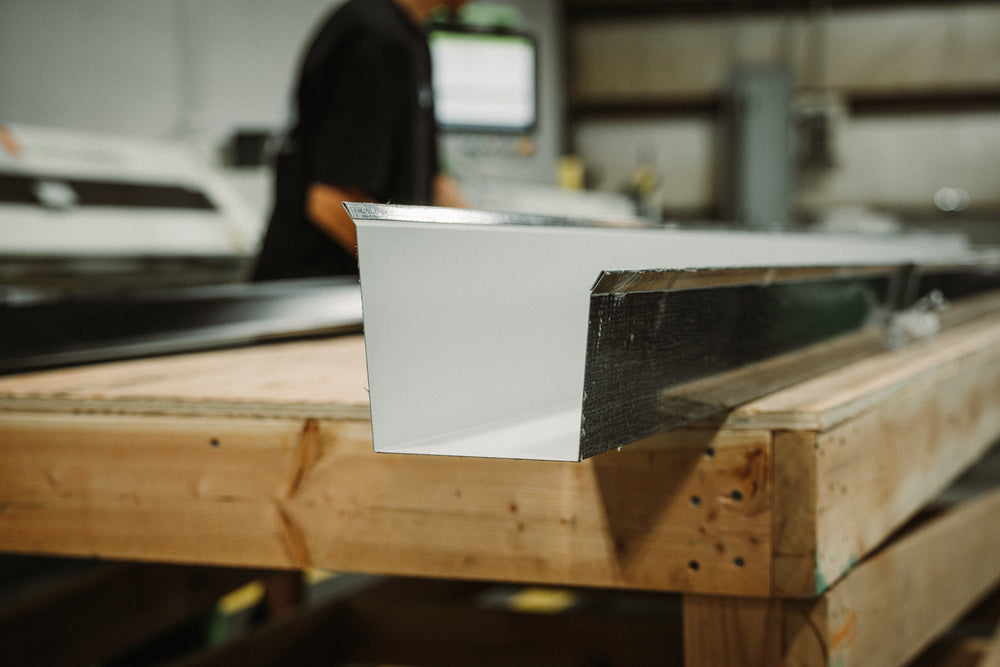

For larger roofs or commercial buildings, commercial gutters (often in a “box gutter” style or oversized fascia gutter) are required to handle the high volume of water. We custom fabricate these gutters to ensure they meet the capacity needs and architectural requirements of the project.
Specifications
Profiles & Dimensions
We offer box gutters in standard sizes like 5-inch and 6-inch (these refer to the gutter opening width) – these are common for many commercial applications. However, we can make gutters even larger (7″, 8″, etc.) if the roof area demands it. The profile (shape of the gutter cross-section) can be square, rectangular, or with custom contours (for example, adding a decorative lip or flanges). If the building has built-in gutters or specific needs, we’ll fabricate liners or custom shapes accordingly.
Materials
24-gauge Kynar-coated steel is frequently used for its strength and finish options. We also use 0.032″ or 0.040″ aluminum for large gutters due to its lighter weight and corrosion resistance. Copper is another option for traditional or high-end projects – a copper gutter system is both functional and visually striking. All metal seams (for box miter corners, end caps, etc.) are riveted and sealed, or soldered for copper, to ensure watertight performance.
Lengths
Our equipment allows us to make gutter sections in lengths up to 20–21 feet. Longer sections mean fewer joints and thus lower chance of leaks. On-site, sections are joined with rivets and sealant or welded (in the case of steel/aluminum) to create continuous runs along the roof edge. We design the joint locations and provide matching splice plates if needed.
Hangers & Installation
We will coordinate the appropriate hanging system for your gutters. For commercial gutters, hidden strap hangers or bracket-and-rod hangers are common. We can fabricate custom heavy-duty hangers that handle snow loads and keep the gutter securely attached. Downspout outlets will be placed per the drainage plan – we punch or cut outlet holes to size and include outlet tubes if requested. Everything is custom, so if you need the gutter to integrate with a specific roof edge detail or a parapet, we will adapt the design to suit.
Downspouts
Downspouts are the vertical pipes that carry rainwater from the gutters down to ground level or the storm drainage. We provide matching downspouts for any gutter system – ensuring consistent look and proper fit.
Specifications
Shapes & Sizes
We commonly fabricaterectangular downspoutsin sizes like3″×3″, 3″×4″, 4″×5″, etc., andround downspoutsin diameters like3″, 4″, 6″and beyond. The choice often depends on the building style and water capacity needed. For example, a 6″ half-round gutter might use a 4″ round downspout; a large commercial box gutter might use dual 4″×5″ rectangular downspouts for very high volume. We’ll calculate or advise on the appropriate size based on roof area and rainfall.
Materials
Downspouts are available in the same materials as the gutters for a uniform system. That means painted steel (24 ga) or aluminum (typically 0.024″ to 0.040″ thickness for strength) are common. We also do copper downspouts (often in 3″ or 4″ round corrugated style, or smooth round) for upscale installations. All downspout seams (if rectangular) are either lock-formed or welded depending on the look – e.g., we can make a smooth-face rectangular downspout with a rear seam for a cleaner appearance.
Section Lengths
Standard downspout sections are 10’ long, but we’ll cut to whatever lengths are needed to minimize joints (for instance, if you have a 14’ run, we might do one 10’ and one 4’ section). We also fabricate all theaccessories: elbows (e.g., 30°, 45°, 75° angles), offsets, transitions (if changing shape/size), and even custom boots at the bottom if needed. For example, we can create a flared diffuser at the bottom or a cleanout trap if that’s requested.
Attachment
We will provide or fabricatedownspout strapsthat match the material and color. Typically, straps are made from the same metal and are about 1″ to 1.5″ wide, secured to the wall with appropriate fasteners. For aesthetics, we often place straps at the joints between sections (which conceals the seam and secures both sections). On taller runs, additional straps are added to ensure stability. All holes (for outlets or for cleanouts) are cut cleanly and we can roll the edges or add a collar, giving a finished look even to functional cutouts.
